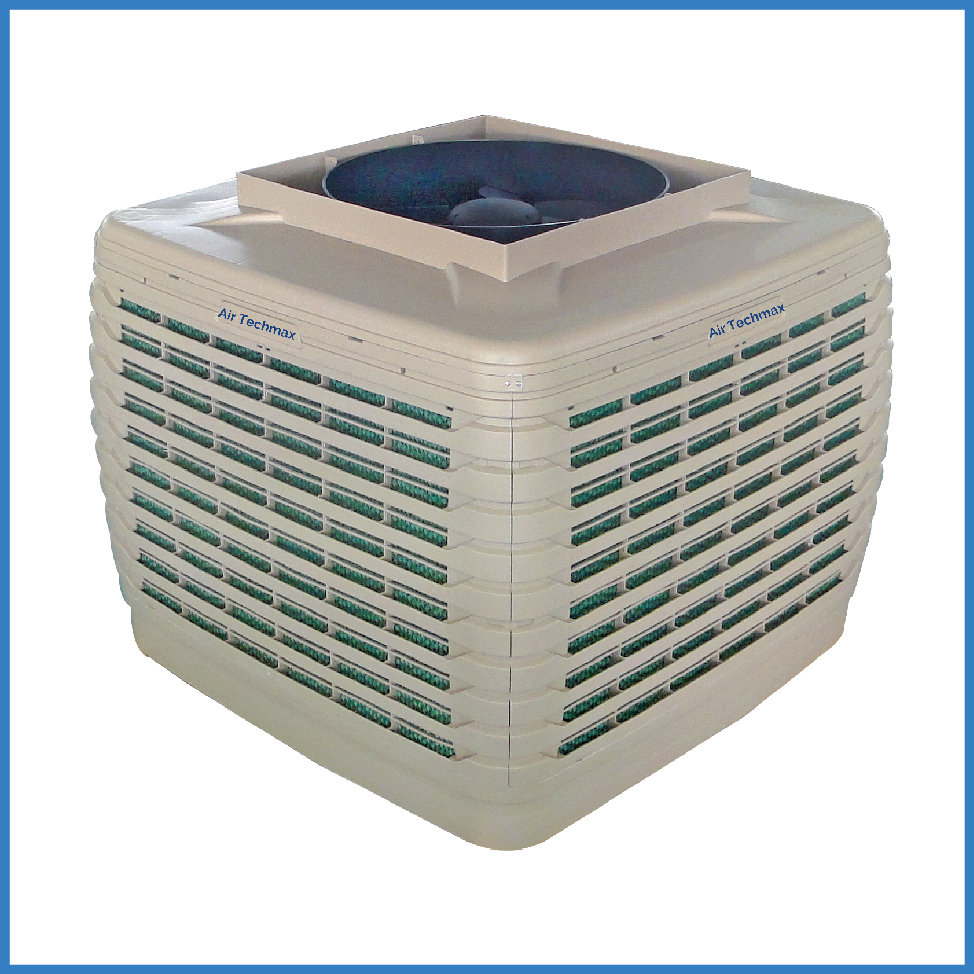

ATM Alpha P18
Specification
| Electrical Source (v/hz) | 220/50 |
| Power (kw) | 1.1 |
| Motor | DC 220v/3-phase |
| Rated Currency (A) | 3.5 |
| Airflow m3/h | 18000 |
| Fan Type | Axial |
| Fan Speed | Multi-speed,Slicon Control |
| Pressure( pa) | 190 |
| Vent Size (LXW)(mm) | 650 x 650 (down) |
| 650 x 650 (up) | |
| 647 x 647 (side) | |
| Net Weiqht (±3kg) | 67 (down) |
| 73 (up) | |
| 87 (side) | |
| Operating weight (kg) | 97 (down) |
| 103 (up) | |
| 117 (side) | |
| Dimension LXWXH (mm) | 1150 x 1150 x 950 (down) |
| 1150 x 1150 x 982 (up) | |
| 1210 x 1150 x 950 (side) | |
| Pad Size LXWXH (mm) | 620 x 825 x 100 |
| Controller | LCD Controller |
Specification
| Electrical Source (v/hz) | 380/50 |
| Power (kw) | 1.1 |
| Motor | 380v/50Hz 3-phase |
| Rated Currency (A) | 2.0/0.85 |
| Airflow m3/h | 18000/11000 |
| Fan Type | Axial |
| Fan Speed | 3-phase,2-speed |
| Pressure( pa) | 194/83 |
| Vent Size (LXW)(mm) | 650 x 650 (down) |
| 650 x 650 (up) | |
| 647 x 647 (side) | |
| Net Weiqht (±3kg) | 80 (down) |
| 86 (up) | |
| 100 (side) | |
| Operating weight (kg) | 110 (down) |
| 116 (up) | |
| 130 (side) | |
| Dimension LXWXH (mm) | 1150 x 1150 x 950 (down) |
| 1150 x 1150 x 982 (up) | |
| 1210 x 1150 x 950 (side) | |
| Pad Size LXWXH (mm) | 620 x 825 x 100 |
| Controller | Button + Knob + Switch |
